Hα spectrum of Alpha Cygni - Deneb - HD 197345 - SAO 49941 [A2Ia] - 2015-12-07

Specs

Alpha Cygni is a prototype of variable stars which exhibit non-radial pulsations, meaning that some portions of the stellar surface are contracting at the same time, other pats expand.

It is a supergiant star in the passage of blue giant to red giant.

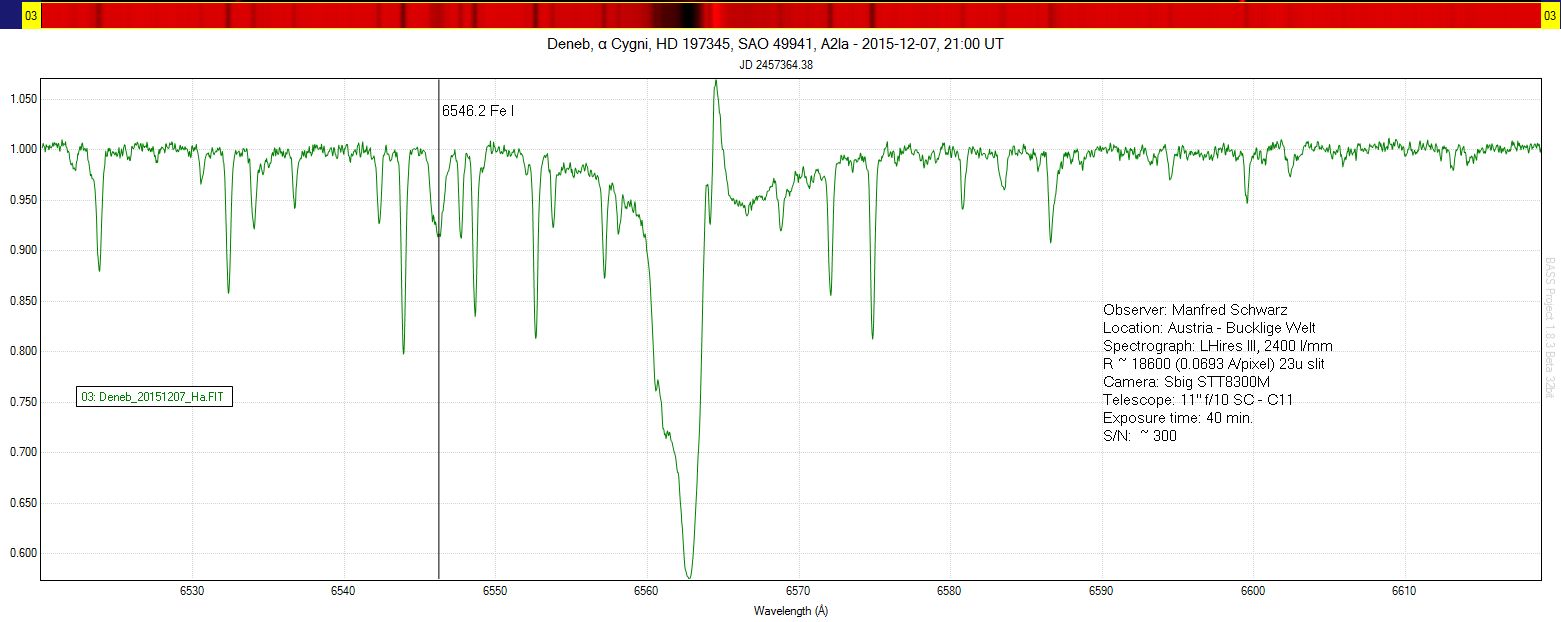

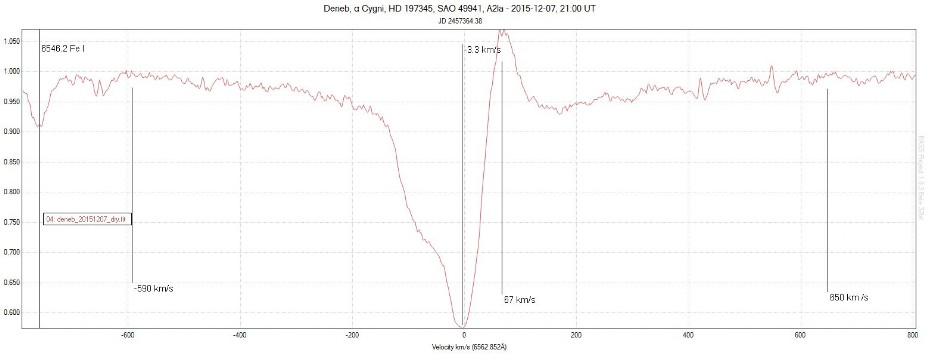

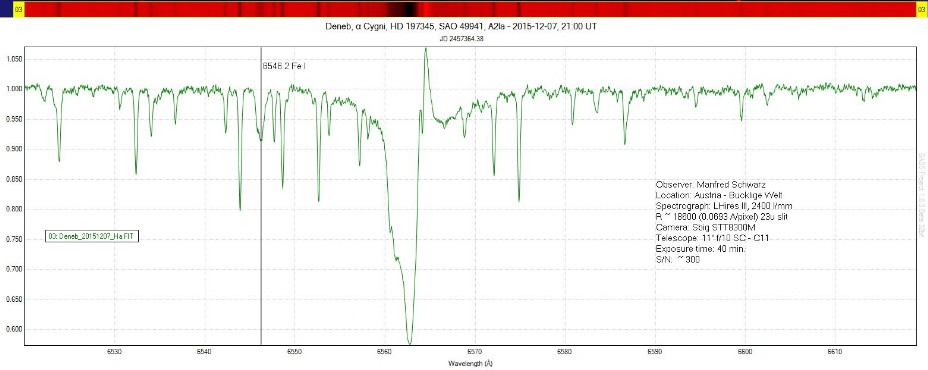

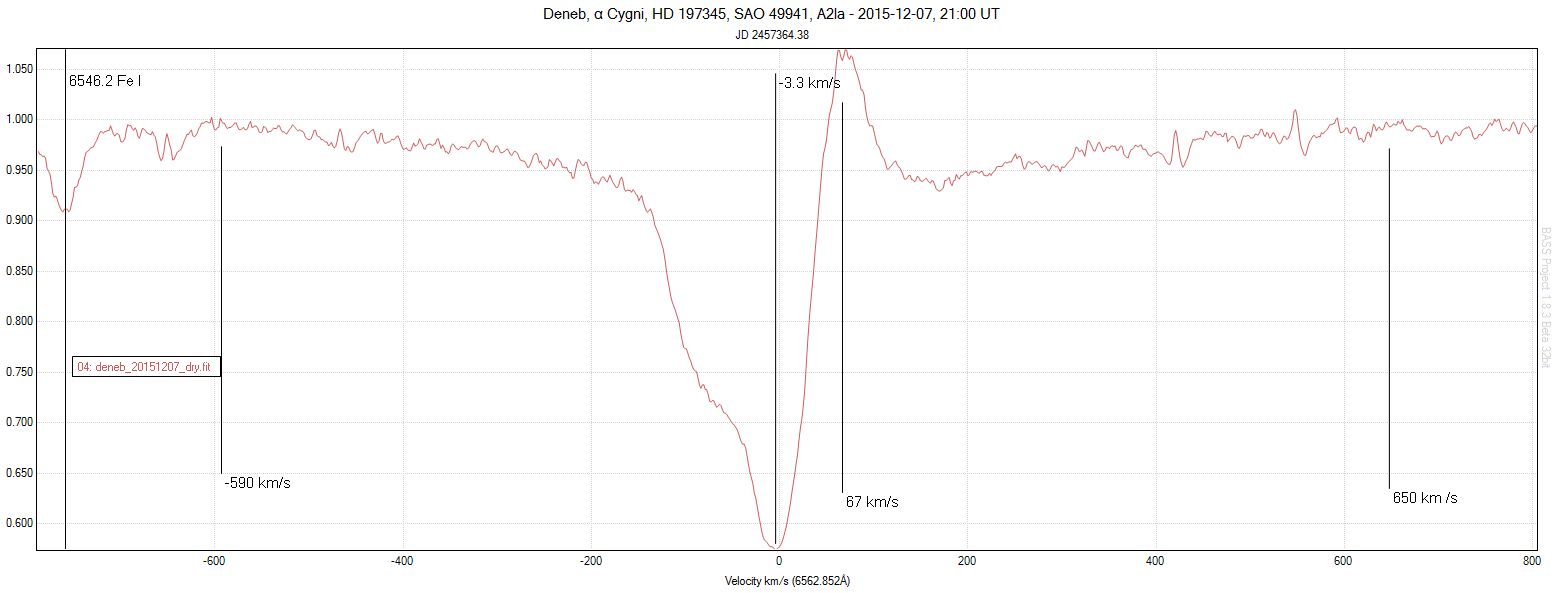

Stellar wind is shown in the spectra profile of Ha.
Telescope: Celestron C11 11" SC, f/10, d=280mm
Spectrograph: Lhires III, 2400gr, slit 23u    Resolution: 0.0693 Å / pixel, resolving power = 18600
Camera: SBIG STT-8300M   Acquisition software: SbigControl     Guiding software: DMKguider
Date: 7th December 2015,  20:45- 21:25 UT, JD 2457364.38
Spectra with 2400 lines/mm, processed with BASS project
Calibrated with on atmospheric H2O lines, relative flux
10 images, each 240 seconds (40 minutes)
Dark corrected, cropped, enlarged by factor 2 and stacked with PixInsight
Calibrated with BassProject    S/N ~ 300
Download spectrum 1D FIT:  deneb_20151207_Ha.FIT
Download spectrum FIT (dry): deneb_20151207_dry.FIT
Download spectrum FIT (RAW, 700KB): Deneb_10x4min_20151207.fit

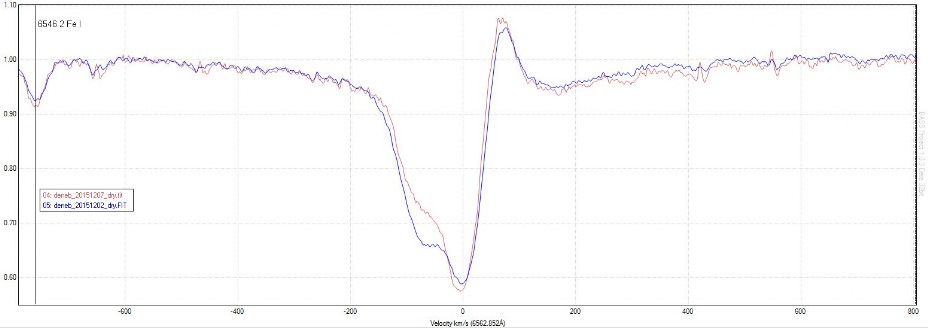

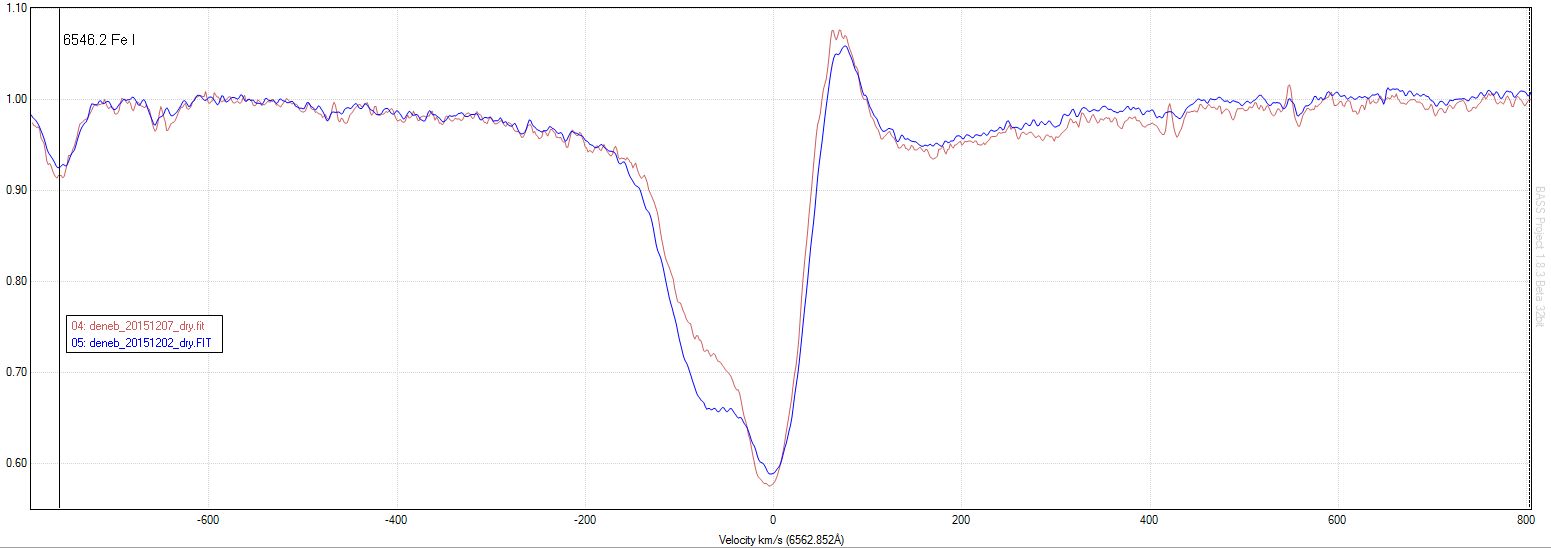

Download BASS project: Deneb_20151207.bun, Deneb_20151207_V_compare.bun
Download complete project(1.1MB): Deneb_20151207.zip
Stellar data (Wikipedia.org):
Constellation: Cygnus, RA: 20h 41m 25.915s, Dec: +45° 16′ 49.217″
v = 1.25 mag, Mv = -8.38 mag
Rv = -4.5 km/s
Distance: 2616 +- 215 ly, 802 +-66 pc
Mass: 19  ± 4 MΘ
Radius: 203 ± 17 RΘ
Luninosity: 196000 ± 32000 LΘ
Surface Temperature: 8,525 ± 75 K
