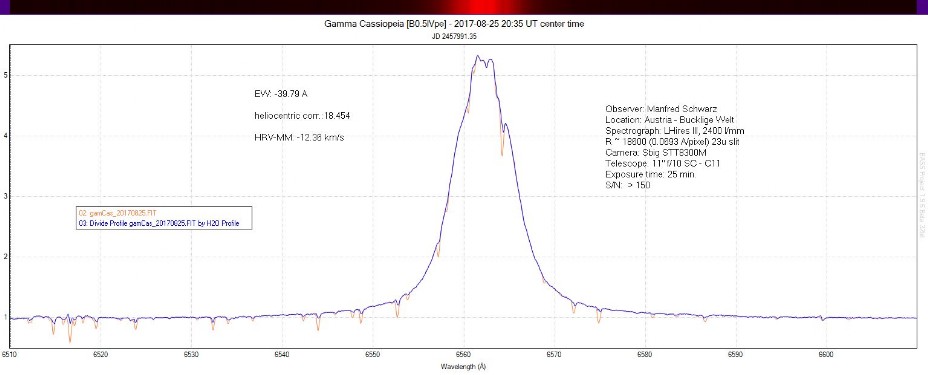

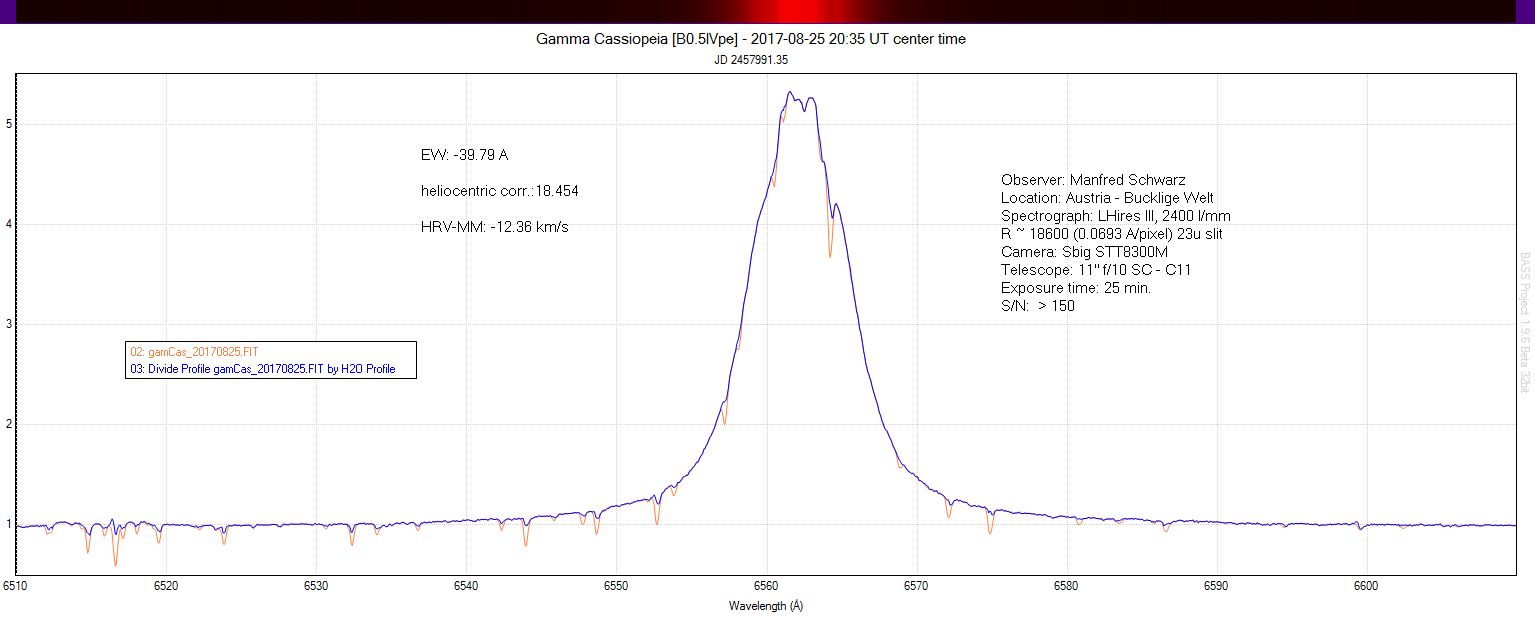

Ha spectrum of Gamma Cassiopeiae - Tsih - HD 5394 - SAO 11482 [B0IVe] - 2017-08-25

Specs



Tsih is a typical Be star, that means there is a disk of gas around the star. The emission lines are caused by this disk.
The star rotates very fast (~ 300km/s). This could be one reason for this disk.
Telescope: Celestron C11, f/10, d=280mm
Spectrograph: Lhires III, 2400gr, slit 23u    Resolution: 0.0693 Å / pixel, resolving power = 18600
Camera: SBIG STT-8300M / SBIG STi   Acquisition software: SbigControl
Date: 25. August 2017,  19:36-20:49 UT, JD 2457991.35
Spectra with 2400 lines/mm, processed with BASS project

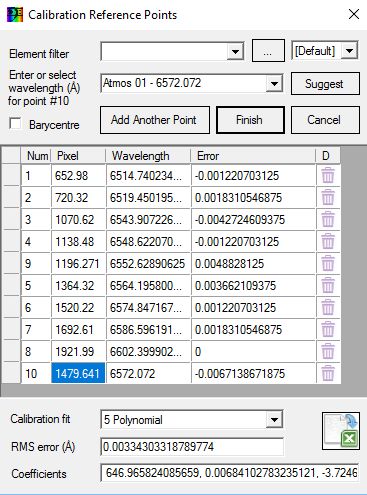

Calibrated on atmospheric H2O lines, normalized flux
16 images, each 120 seconds (32 minutes)
Dark corrected and stacked with Pxinsight
H2O correction with VSpec

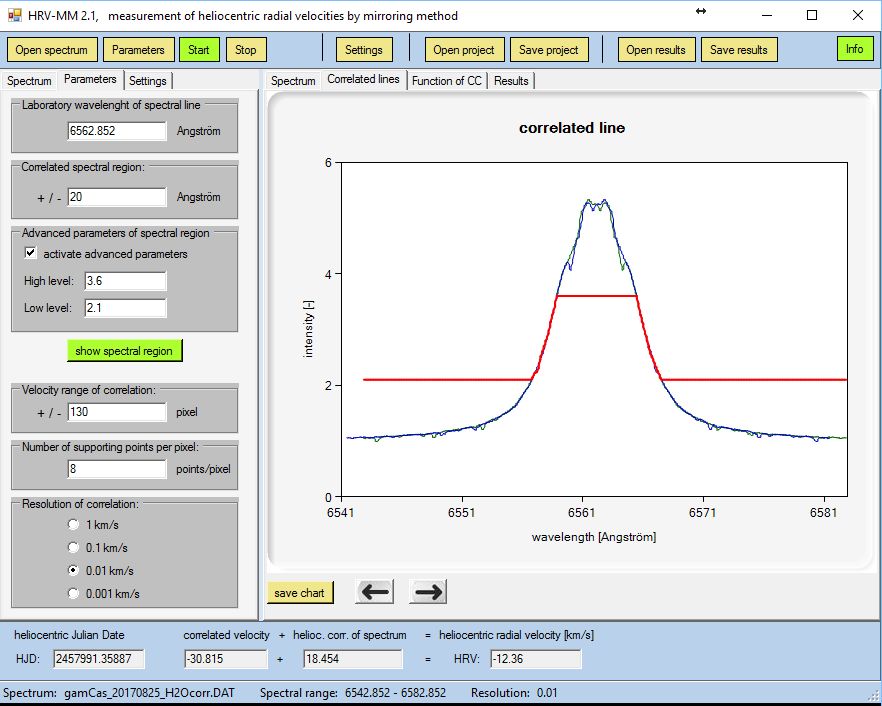

RV-measure with HRV-MM2
Download spectrum 1D FIT dry:  gamCas_20170825_H2Ocorr.fit
Download RAW spectrum (580KB): gamCas_25x60s_mitFlat_rotate.fit
Download spectrum 1D FIT:  gamCas_20170825.FIT
Download BASS project bundle: gamCas_20170825.bun
Download complete project(15MB): gamCas_20170825.zip
Stellar data (Wikipedia.org):
Constellation: Cassiopeia, RA: 00h 56m 42.50108s, Dec: +60° 43′ 00.2984″
v = 2.47 mag, Mv = -4 mag
Rv = -6.8 km/s
Distance: 550 +- 10 ly, 168 +-3 pc
Mass: 19.3 +-0.1 MΘ
Radius: ~ 10 RΘ
Luninosity: 55000 LΘ
Rotational velocity: ~300 km/s
Age: 8 +-0.4 x 10^6 years
