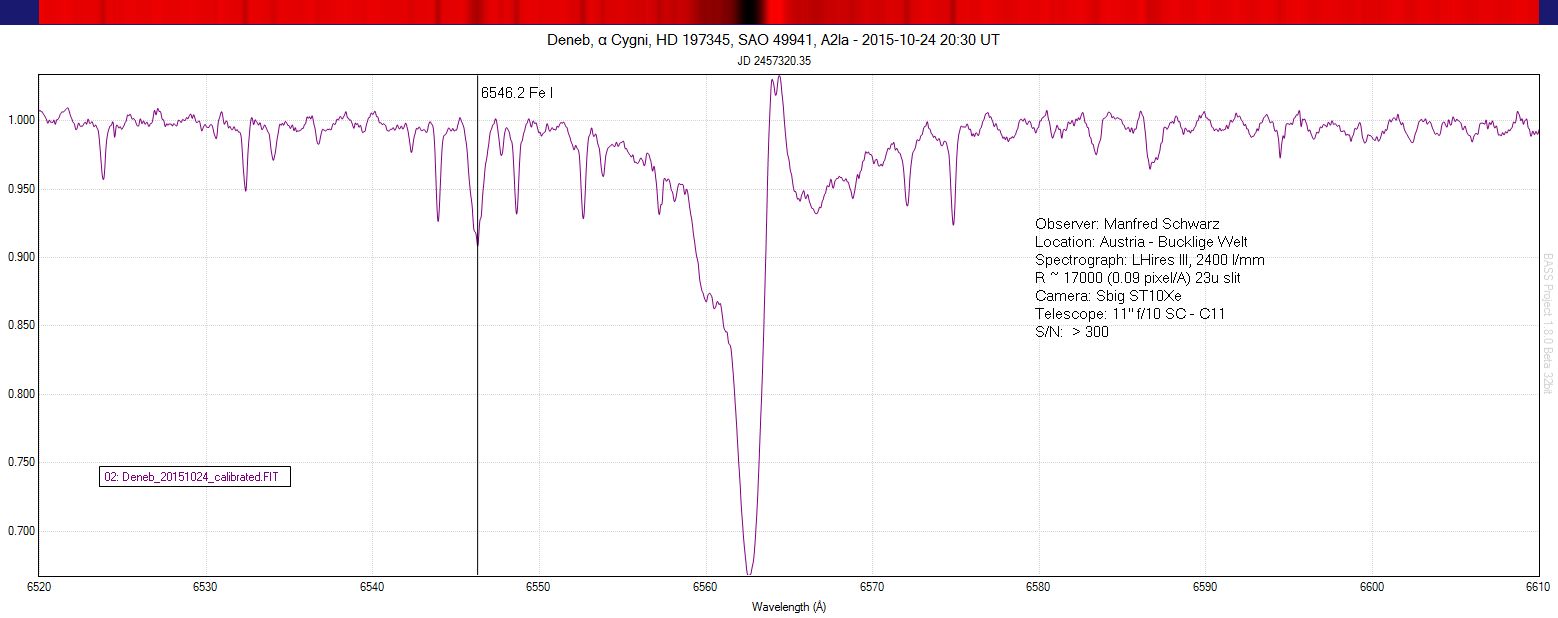

Hα spectrum of Alpha Cygni - Deneb - HD 197345 - SAO 49941 [A2Ia]
 |
Alpha Cygni is a prototype of variable stars which exhibit non-radial pulsations, meaning that some portions of the stellar surface are contracting at the same time, other pats expand. It is a supergiant star in the passage of blue giant to red giant. Stellar wind is shown in the spectra profile of Ha. |
|
| Telescope: Celestron C11, f/10, d=280mm | Spectra with 2400 lines/mm, processed with BASS project | Download spectrum 1D FIT: Deneb_20151024_calibrated.FIT |
| Spectrograph: Lhires III, 2400gr, slit 23u | Calibrated with on atmospheric H2O lines, relative flux | Download spectrum DAT: Deneb_20151024.DAT |
| Camera: SBIG ST10-Xe | 10 images, each 240 seconds (40 minutes) | Download spectrum 1D IT (uncalibrated): Deneb_20151024_1D.FIT |

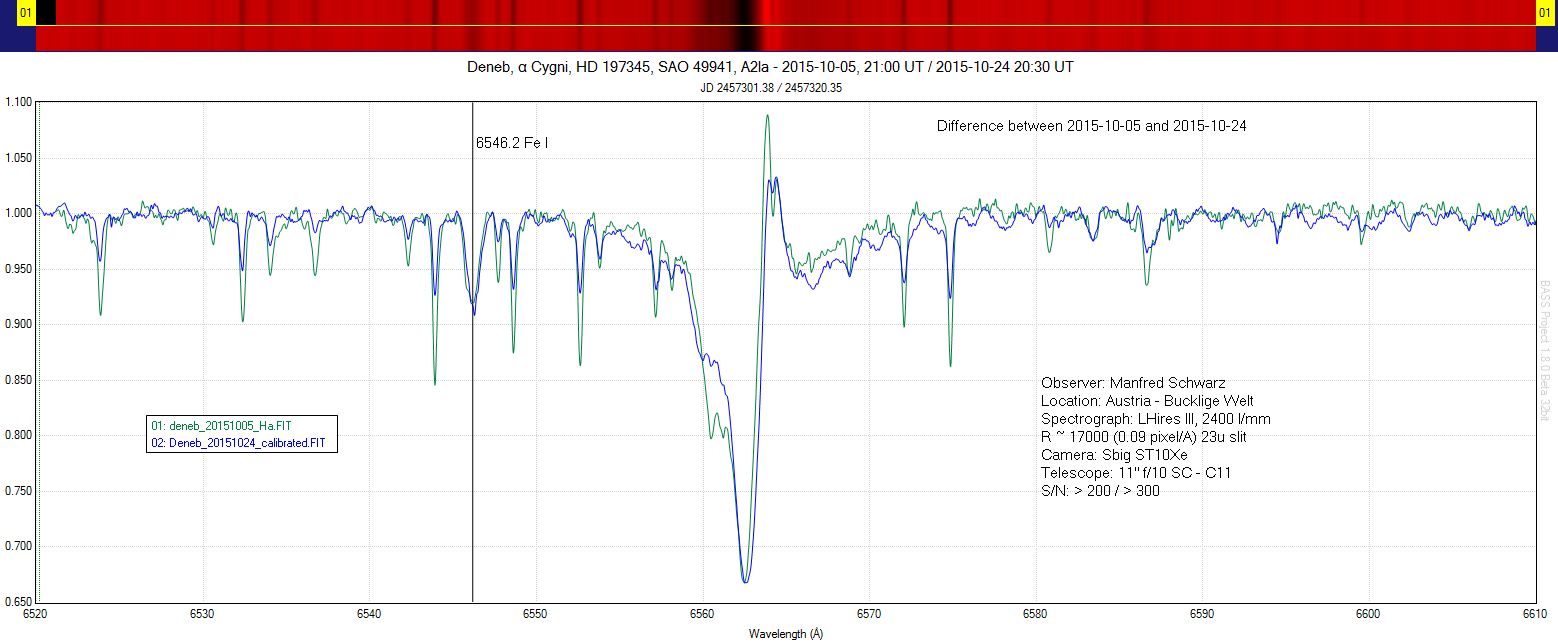

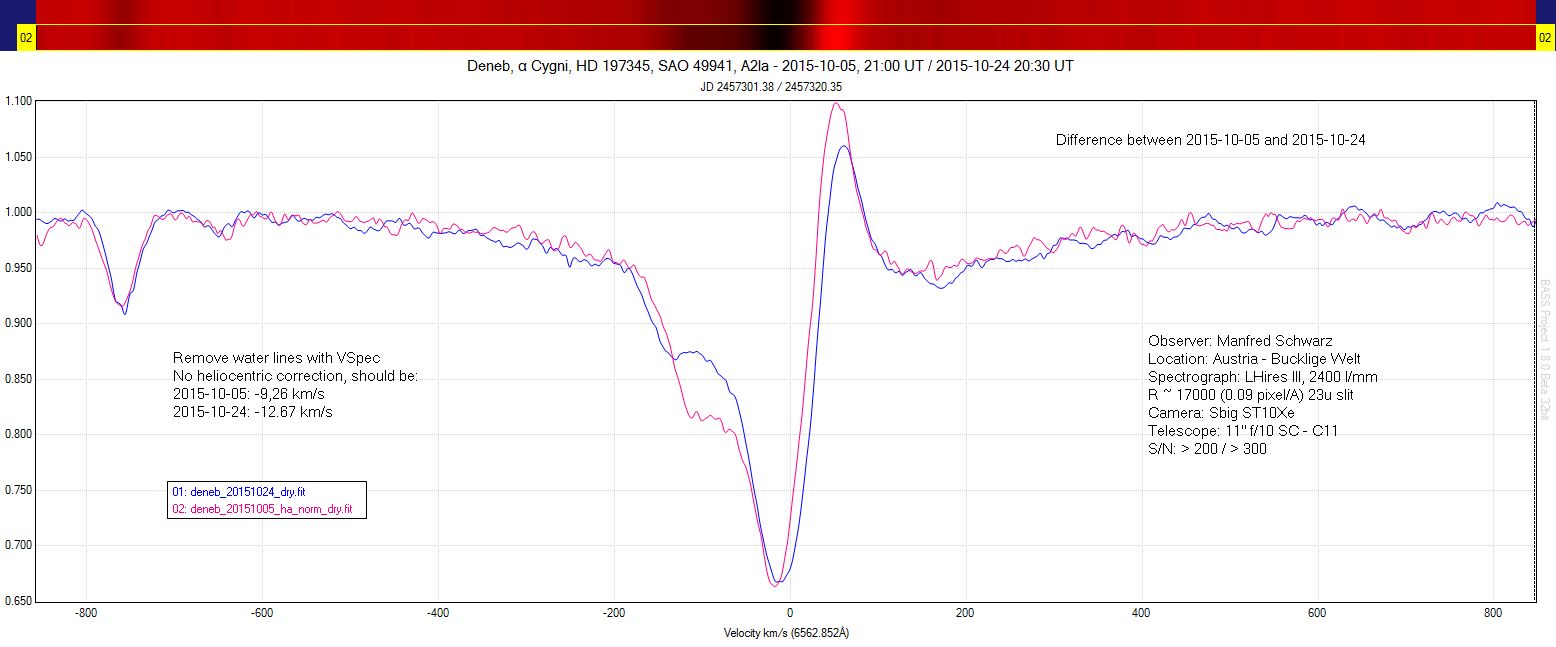

| Resolution: 0.09 Å / pixel, resolving power = 17000 | Dark corrected, cropped, enlarged by factor 4 and stacked with PixInsight | Download BASS project: Deneb_20151024.bun Deneb_20151005_20151024.bun Deneb_20151024vs20151005_V.bun |
| Acquisition software: SbigControl Guiding Software: DMKguider | Calibrated with BassProject | Download complete project(2MB): Deneb_20151024.zip |
| Date: 24. October 2015, 20:06- 20:55 UT, JD 2457320.35 | S/N: > 300 | |
 |
||
 |
||
 |
||
 |
||
| Stellar data (Wikipedio.org): | ||
| Constellation: Cygnus, RA: 20h 41m 25.915s, Dec: +45° 16′ 49.217″ | ||
| v = 1.25 mag, Mv = -8.6 mag | ||

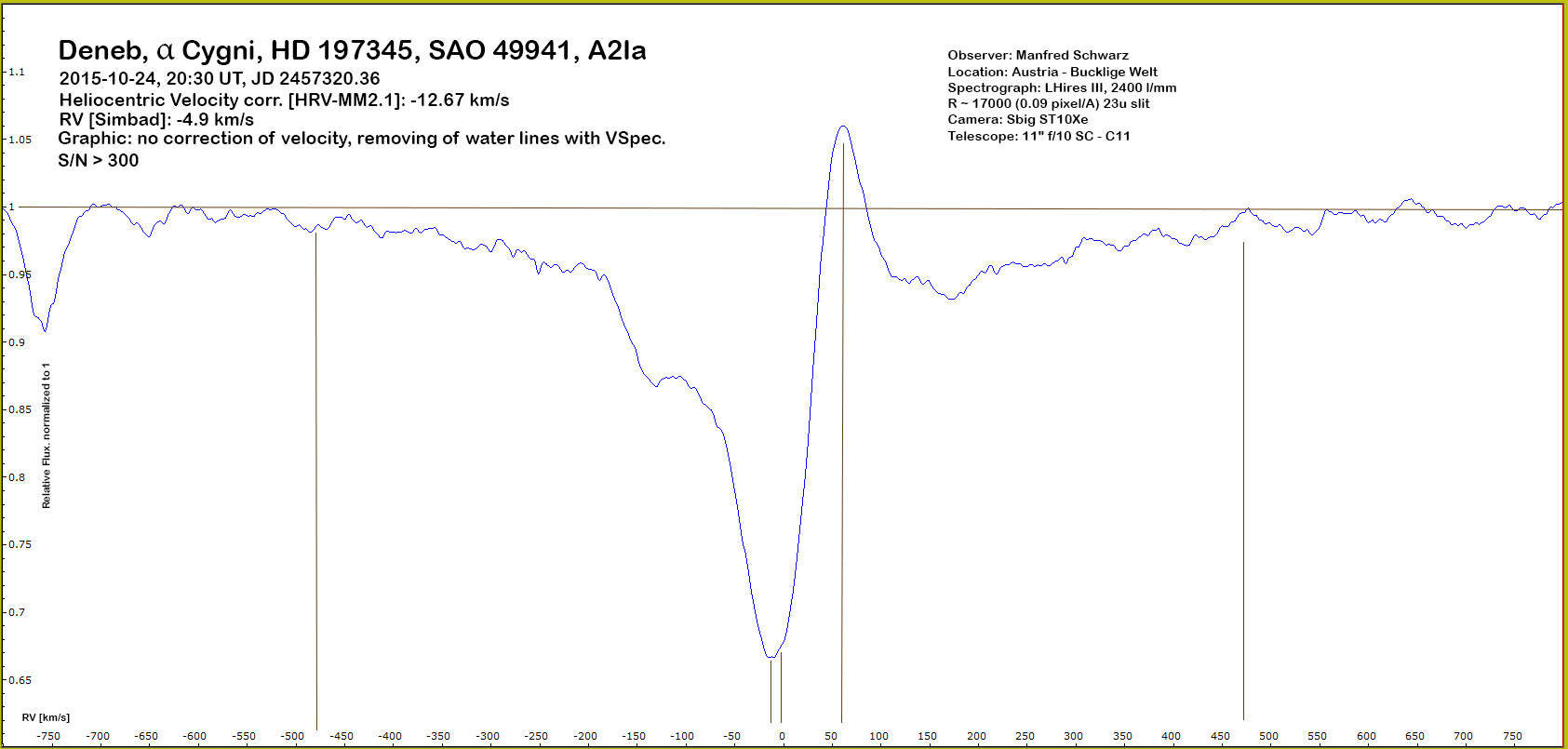

| Rv = -4.9 km/s | ||
| Distance: 3000 +- 2000 ly, 1000 +-600 pc | ||
| Mass: 20 - 25 MΘ | ||
| Radius: ~ 100 - 200 RΘ | ||
| Luninosity: 250000 LΘ | ||
| Rotation: 80 days | ||
| Temperature: 8400 K | ||
